What‘s in the Apollo 600+ PAT Tester box:
- Apollo Instrument
- Professional Cary Case
- Test Lead 1.2m with Alligator Clip, Red
- Test Lead 1.2m with Alligator Clip, Black
- IEC Extension Lead, 0.5m
- Black Mains Lead
- USB Download Lead
- Apollo+ Check Box
- UKAS Calibration Certificate
- Quick Start Guide

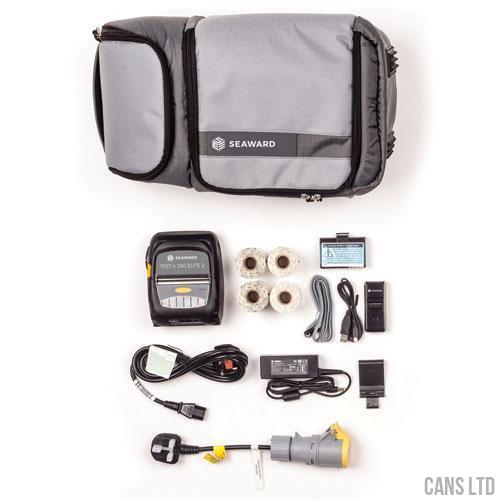

What extra do I get in a Elite Kit Bundle?
- Test n Tag Elite 2 Printer
- 2D Bluetooth Barcode Scanner
- 2x Elite durable labels 25mm
- 2x Elite durable labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Benefits of the Elite Bundle Kit:
Streamline the PAT testing process further by utilising the Apollo 600+ with a compatible printer, barcode scanner and PATGuard 3 software.
Transfer data to your computer remotely using the 2D Bluetooth Barcode Scanner and a smartphone, or download the results via a USB cable directly. Once downloaded to PATGuard 3, it is easy to keep track of historical test and inspections as well as produce reports, certificates and invoices - offering total peace of mind and quicker, easier management of scheduling inspections and tests.

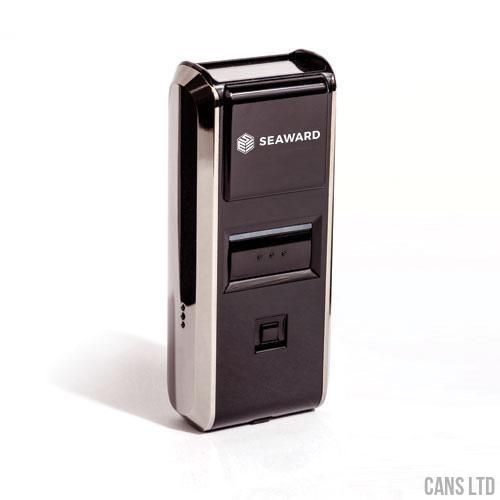

2D Barcode Scanner:
Seaward have introduced the ability to print 2D barcodes using the ‘Test n Tag‘ Elite 2 printer. Previous 1D barcodes have allowed PAT professionals to store minimal information about an appliance however with the new 2D barcodes you can store a lot more information which speeds up the retesting process.
So what data can be stored in your PAT barcode lable?
1. Asset ID
4. Last and next test dates
‘Test n Tag‘ Elite 2 Rugged Portable Printer:
Using Seaward’s ‘Test n Tag‘ Elite 2 printer you can now print labels that include our unique QR data code, the Apollo 600+ and 500+ have the ability to read the data contained in the code via our new Bluetooth 2D Elite barcode scanner and populate the fields automatically for quicker retesting without the need for data upload.

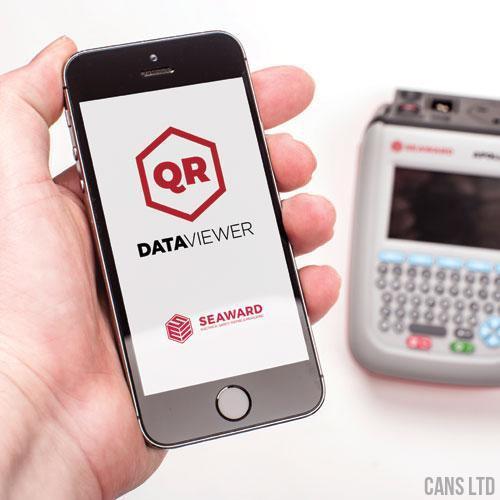

Used in conjunction with the QR DATA Viewer app streamlining your work even more, allowing duty holders and maintenance managers read 2D barcodes on their portable appliances so they can view in-depth last test data. Test information about appliances can be sent directly to an email address so the duty holder or maintenance manager can make the relevant department aware of items that need attention. Available for download on the App Store and Google play (Android version compatible with version 3.2 and higher)
Our Lead Trainer says –
Save timing by using a printer? – Then it makes sense to save money by buying the tester and printer as a package. The Test n Tag Elite 2 printer is a robust and compact thermal printer that uses 52 x 25mm labels (4 rolls supplied, approx. 160 labels per roll). Now upgraded to allow the printing of 2D barcodes (with their greater capacity for the retention of test results) when used with the Apollo 500+ and 600+ testers. Please note that the printer connects to the Apollo via Bluetooth allowing the printer to be clipped to a work belt if needed. The bundle also includes an upgraded Bluetooth 1D & 2D barcode scanner, 110V adaptor and a spacious carry case. (The Apollo 500/600 bundles are supplied with larger 52 x 74mm labels). (Produces 1D barcodes with used with the Apollo 400+)

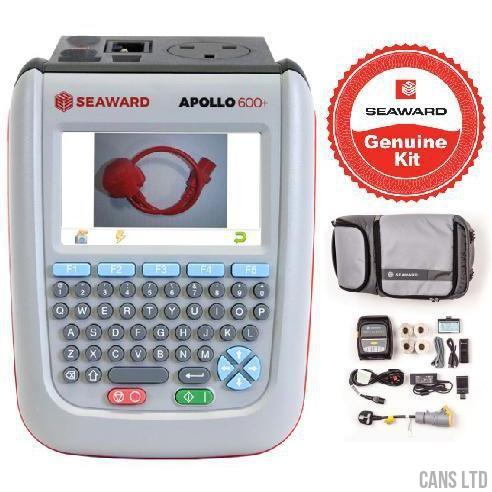

The Apollo 600+ main unit:
For complete traceability of results, including proof of visual inspection
The Apollo 600+ PAT Tester features an on-board camera, allowing photographs to be stored alongside risk assessments and other test and inspection data.

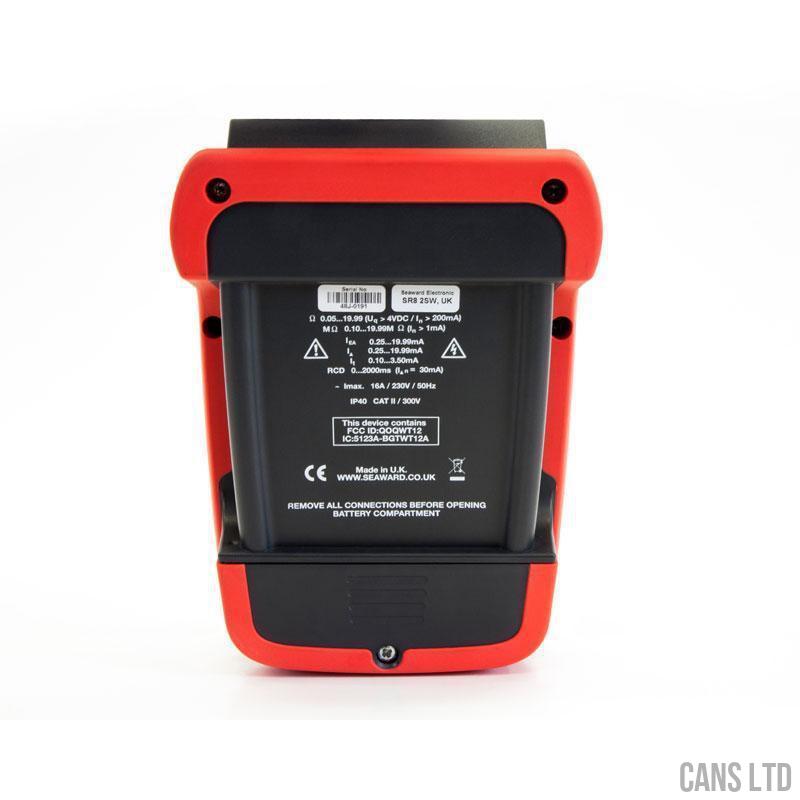

Seaward have also introduced an interchangeable rechargeable battery to minimise downtime when you are testing a large number of appliances in one day.
Apollo 600+ PAT Tester revolutionises safety management, with a built-in risk assessment tool for any workplace hazard and a variety of testing and inspection reports including portable appliance testing, fire detection and emergency lighting; Apollo 600+ offers an all-in-one solution to managing a risk-based approach to health and safety in any workplace, reducing the burden and ensuring compliance.
The Apollo 600+ PAT Tester has a large on-board storage enabling you to store more test result data - this is great for high volume testing, or if you are retesting a large number of appliances on a regular basis.
- Improved functionality and accessories
- Storage for up to 50,000 records and 2,000 visual inspection images
- On-board camera to prove visual inspection as per IET CoP
- Ability to use (2D) QR codes
- Built in universal and electrical risk assessment tools
- User configurable tests for non-electrical tests and inspections
- Additional health and safety certificates
Electrical test functions of the Apollo 600+:
- Low current earth continuity test (with Zap circuit) guaranteeing accurate measurement
- Insulation resistance
- IEC lead test
- Protective conductor current
- Touch current
- Load power/current
- Alternative leakage current
- Point to point testing of earth continuity and insulation resistance
- RCD test
- Power socket test
