What‘s in the Apollo 400+ PAT Tester box:
- Apollo Instrument
- Test Lead 1.2m with Alligator Clip, Red
- IEC Extension Lead, 0.5m
- Black Mains Lead
- USB Download Lead
- UKAS Calibration Certificate
- Quick Start Guide

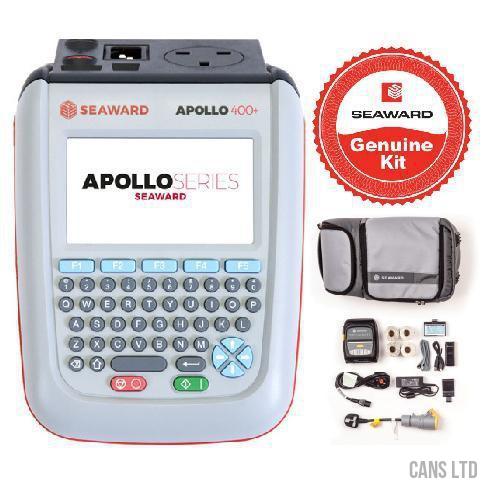

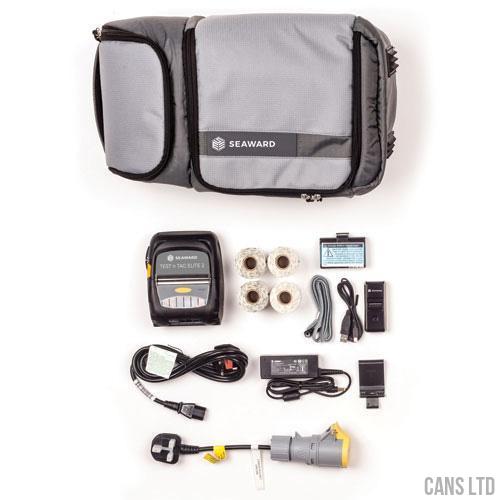

What extra do I get in a Elite Kit Bundle?
- Test n Tag Elite 2 Printer
- 2D Bluetooth Barcode Scanner
- 2x Elite durable labels 25mm
- 2x Elite durable labels 75mm
- Apollo Kit Carry Case
- 110V Test Adaptor
Benefits of the Elite Bundle Kit:
Streamline the PAT testing process further by utilising the Apollo 400+ with a compatible printer, barcode scanner and PATGuard 3 software.
Transfer data to your computer remotely using the 2D Bluetooth Barcode Scanner and a smartphone, or download the results via a USB cable directly. Once downloaded to PATGuard 3, it is easy to keep track of historical test and inspections as well as produce reports, certificates and invoices - offering total peace of mind and quicker, easier management of scheduling inspections and tests.

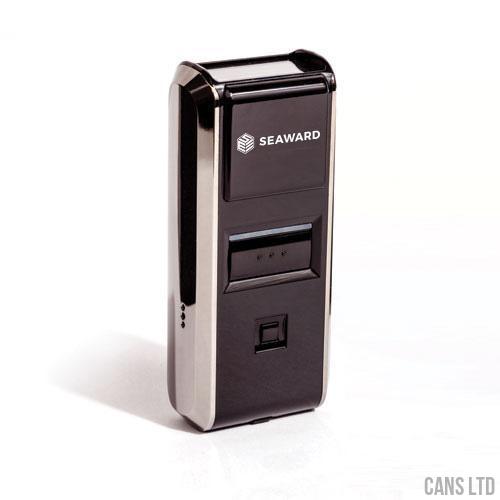

2D Barcode Scanner:
Seaward have introduced the ability to print 2D barcodes using the ‘Test n Tag‘ Elite 2 printer. Previous 1D barcodes have allowed PAT professionals to store minimal information about an appliance however with the new 2D barcodes you can store a lot more information which speeds up the retesting process.
So what data can be stored in your PAT barcode lable?
1. Asset ID
4. Last and next test dates
The 2D barcode scanner is only compatible with the Apollo 500+ and Apollo 600+ PAT testers when used with the Test n Tag Elite 2 printer. The 2D scanner will still read 1D barcodes when used with the Apollo 400+.
‘Test n Tag‘ Elite 2 Rugged Portable Printer:
Using Seaward’s ‘Test n Tag‘ Elite 2 printer you can now print labels that include our unique QR data code, the Apollo 600+ and 500+ have the ability to read the data contained in the code via our new Bluetooth 2D Elite barcode scanner and populate the fields automatically for quicker retesting without the need for data upload.

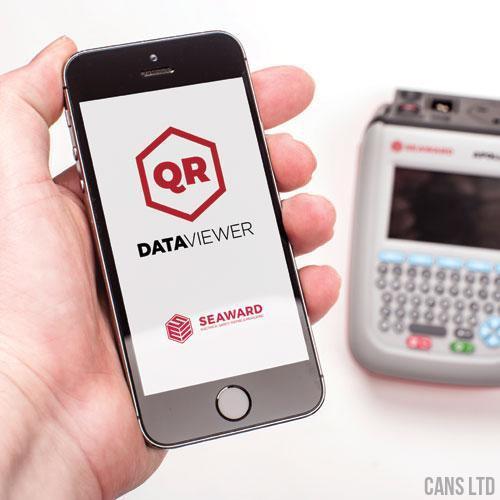

Used in conjunction with the QR DATA Viewer app streamlining your work even more, allowing duty holders and maintenance managers read 2D barcodes on their portable appliances so they can view in-depth last test data. Test information about appliances can be sent directly to an email address so the duty holder or maintenance manager can make the relevant department aware of items that need attention. Available for download on the App Store and Google play (Android version compatible with version 3.2 and higher)

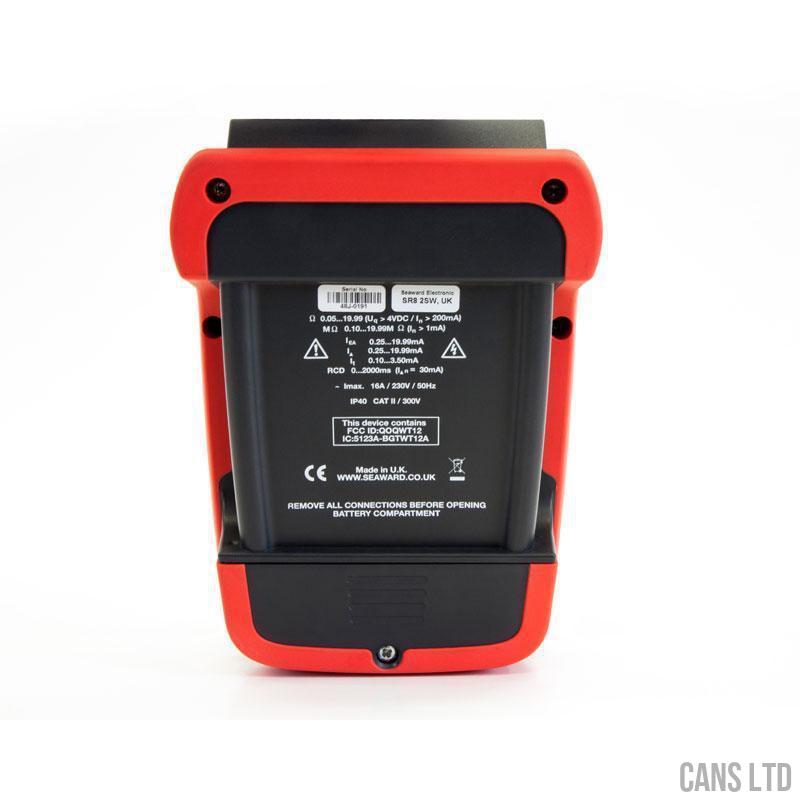

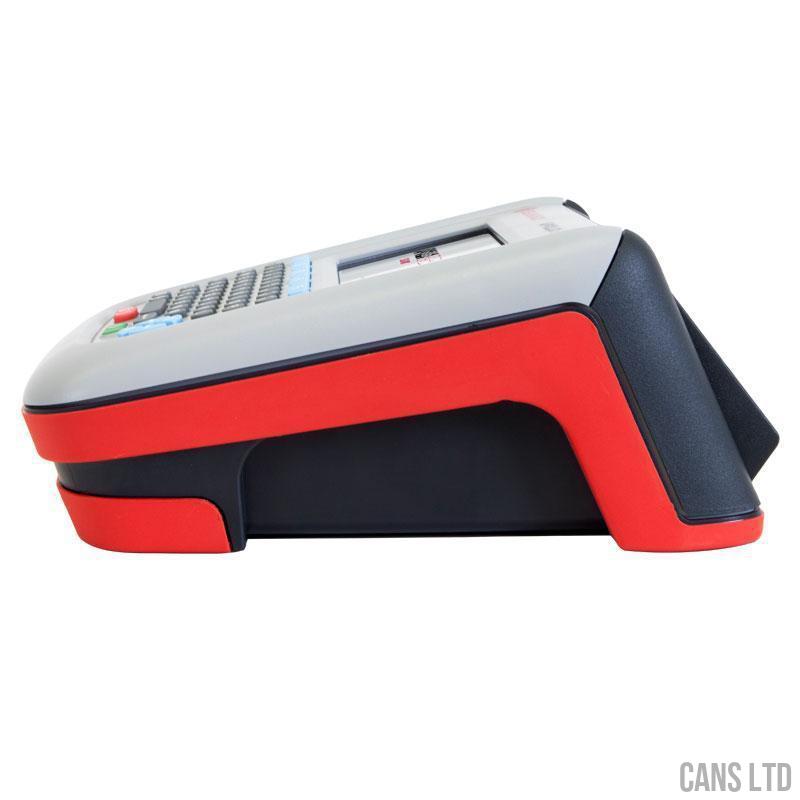

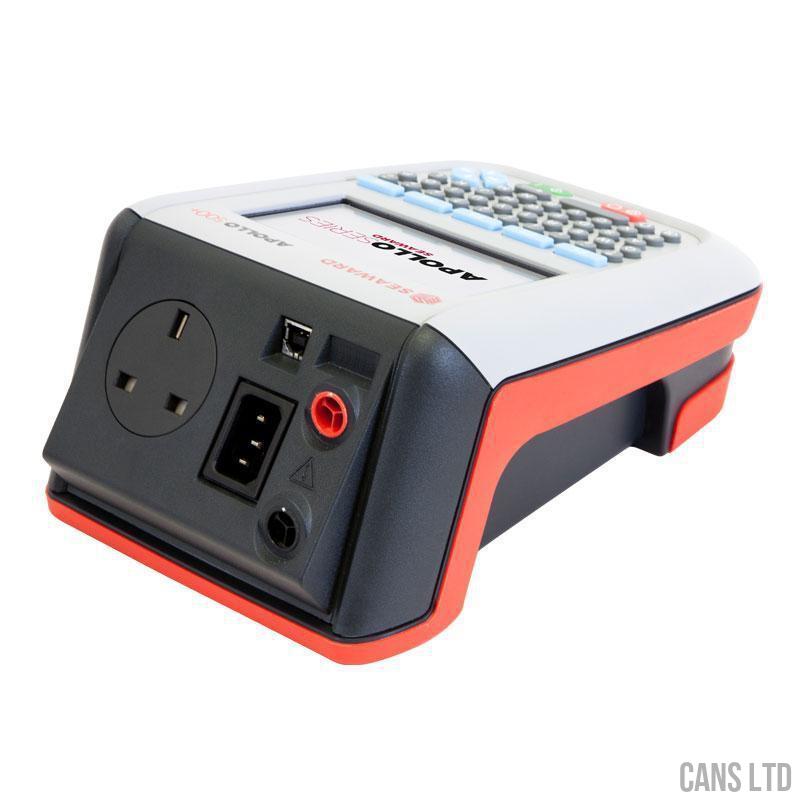

The Apollo 400+ main unit:
With on-board storage for up to 2,000 appliance records
Seaward‘s world beating NEW Apollo+ Series now comes with improved functionality and accessories, including an external rechargeable battery pack (reducing downtime).
It features a comprehensive range of electrical safety tests which ensure compliance with the IET 4th Edition Code of Practice, whilst remote data transfer and USB download makes data management easy and efficient.
Create up to 25 user configurable electrical test and visual inspection sequences allowing you to change test limits and add your own custom tests.
Streamline the PAT testing process further by using the Apollo 400+ with a compatible label printer, barcode scanner and PATGuard 3 software.
The Apollo 400+ is ideal for mid-volume PAT testing where detailed records are required.
- High definition colour display
- Fast and easy data input
- Store 2000 appliance records
- Remote data transfer from field to office
- Bluetooth connectivity
Our Lead Trainer says –
Save timing by using a printer? – Then it makes sense to save money by buying the tester and printer as a package. The Test n Tag Elite 2 printer is a robust and compact thermal printer that uses 52 x 25mm labels (4 rolls supplied, approx. 160 labels per roll). Now upgraded to allow the printing of 2D barcodes (with their greater capacity for the retention of test results) when used with the Apollo 500+ and 600+ testers. Please note that the printer connects to the Apollo via Bluetooth allowing the printer to be clipped to a work belt if needed. The bundle also includes an upgraded Bluetooth 1D & 2D barcode scanner, 110V adaptor and a spacious carry case. (The Apollo 500/600 bundles are supplied with larger 52 x 74mm labels). (Produces 1D barcodes with used with the Apollo 400+)
Electrical test functions of the Apollo 400+:
- Low current earth continuity test guaranteeing accurate measurement
- Point to point testing* (earth continuity and insulation resistance)
- IEC lead test
- Touch current
- Load power/current
- Alternative leakage current
- RCD test
- Power socket test
