- Measures up to 30 TΩ
- PI, DAR, DD, SV and ramp test
- Improved productivity – operate from line power/mains if battery dead
- Li ion battery - extended capacity, rapid charge
- Advanced memory with time/date stamp
- CATIV 600 V safety rating

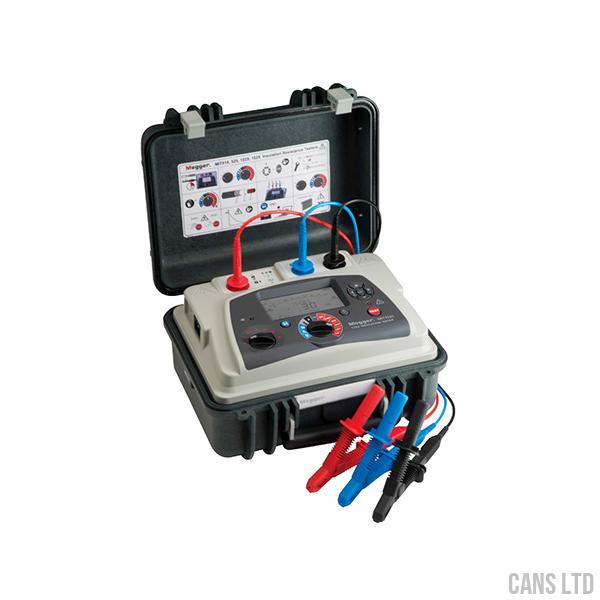

Offering CAT IV safety, the MIT1525 is compact, light 15 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It benefits from the Megger dual case construction, Tough on the outside and fire retardant on the inside.
As well as measuring insulation resistance to 30 TΩ, the MIT1525 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.
Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.
