Martindale VT12 - CANS LTD

Martindale VT12

CALL FOR PRICE

Description

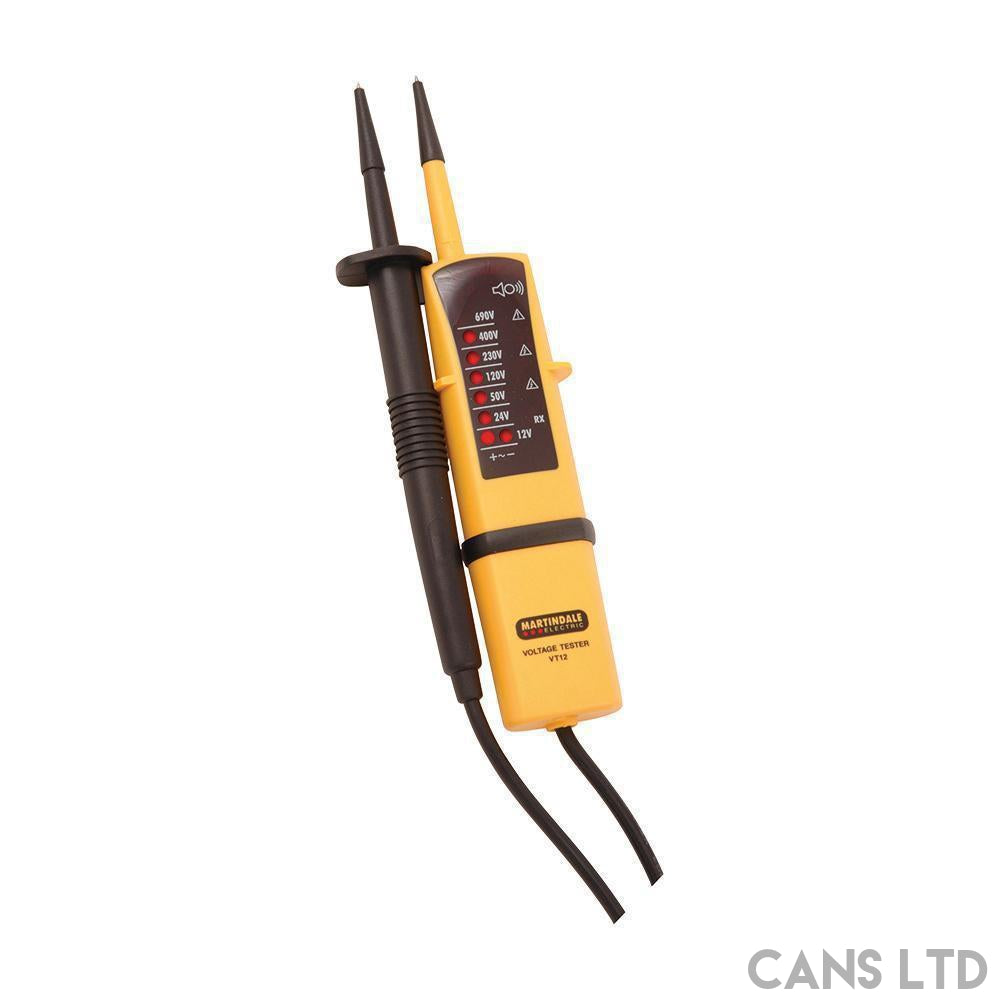

The VT12 is a two pole Voltage Indicator & Continuity tester with automatic AC/DC detection up to 690V and continuity testing with optical and acoustic indication up to 500k Ohms.

The bright LED indicators provide immediate display of the voltage range and the VT12 is supplied with probe caps for GS38 compliance.

It is ergonomically designed and durable enough for both industrial and domestic use. Constructed in accordance with the latest safety standards.

Specifications

Voltage range 12-690V AC/DC
LED indication ±12, 24, 50, 120, 230, 400, 690V
AC/DC voltage detection automatic
Range detection automatic
Frequency range DC, 0-65Hz
Continuity test optical/acoustic
Continuity range 200kΩ
GS 38 caps removable
Complies with BS EN 61243-3 2014
Weight 130g approx
Dimension 205 x 67 x 27mm
Includes battery and manual

Accessories

Comparison

  VT12 VT25 VT28
LED Voltage Indication 12-690V AC/ DC 12-690V AC/ DC 12-690V AC/ DC
LED + LCD Voltage Indication 10V-690V (DC, 16Hz-400Hz)
Continuity (LED + Buzzer)
Phase Rotation
Single Pole Test
LED Torch
PD690 Proving Unit
Combination Carry Case
Safety Rating CAT III 600V
CAT IV 300V
CAT III 1000V
CAT IV 600V
CAT III 1000V
CAT IV 600V
GS38 Compliance

Datasheet

Download



Manual

Download
