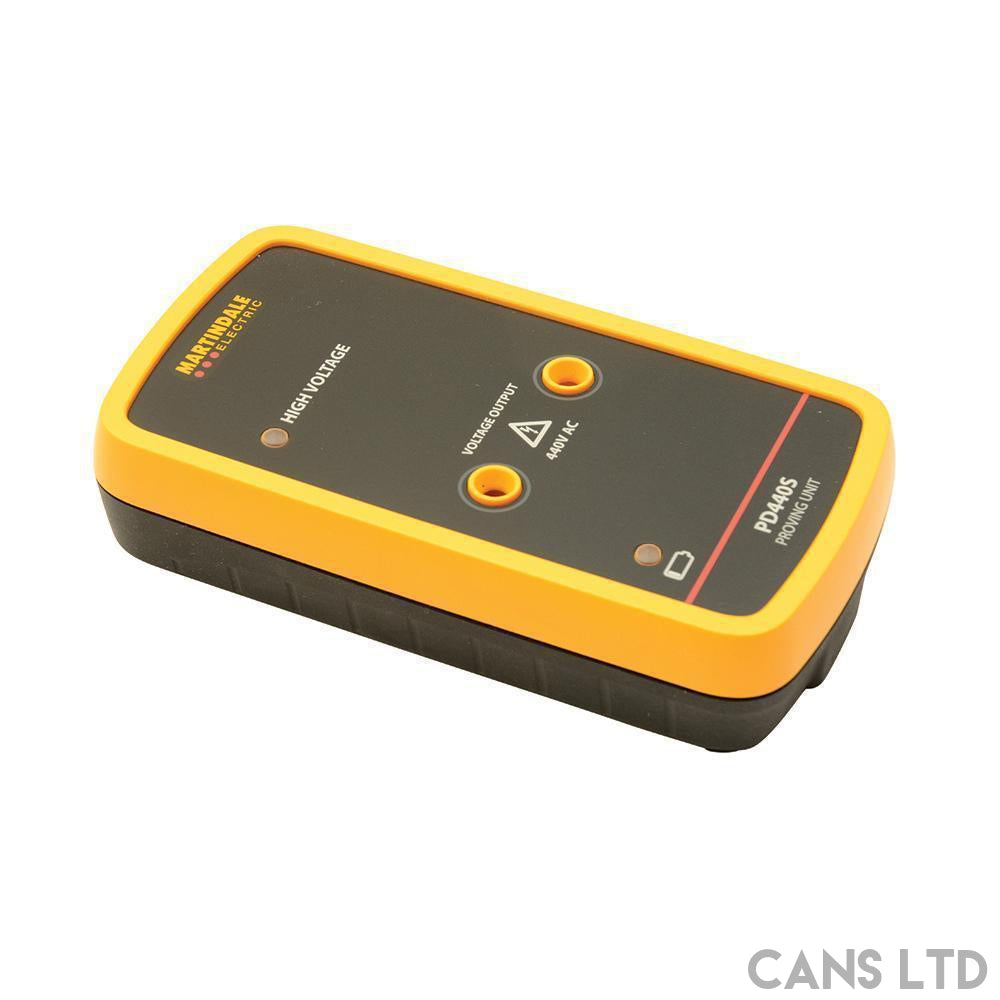

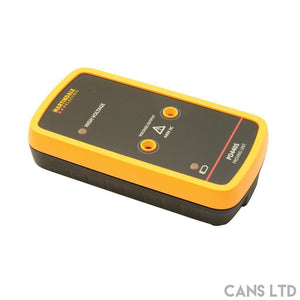

Martindale PD440S

Regular price £95.00 £0.00

Description

Safe electrical working requires the use of a voltage indicator that has been proven with a suitable proving device before and after use to ensure the instrument is working correctly in accordance with the Electricity at Work Regulations.

The Martindale PD440S is a direct replacement for the industry standard PD440. Its voltage output is matched to the VI13800, the MTL10 and MTL20 Drummond test lamps and all other 440V voltage indicators and testers.

In addition to all the benefits of the industry standard Martindale PD440 and PD690 proving units, the S models feature a tough overmoulded low profile case and come with an MG3 magnetic hanger (excluding kits). They are fast and easy to use, instantly supplying the test voltage for both high and low impedance voltage indicators, test lamps and meters.

It’s good practice to match the output voltage of the proving unit with the voltage range of the instrument to be proved. The new S and SX Series simplify matching devices as they are colour coded with Martindale voltage indicators.

Specifications

Output voltage 440V nominal
Output frequency 50Hz nominal
Output loading See datasheet
Temperature (Operating & Storage) -10°C to 40°C
Humidity (Operating & Storage) max. 70% R.H.
Altitude up to 2000m
Pollution Degree 2
Power 6 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A)
Dimensions 150 x 80 x 35mm
Weight 350g approx. with batteries

Accessories

Comparison

  PD440S
PD690S PD440SX
Maximum Voltage Output 440V AC 690V AC 440V AC
LED Voltage Thresholds 440V 690V 50V, 120V, 230V, 440V
High Voltage LED Multiple
Low Battery LED
High/Low Z Compatible
CALCHECK Resistance Values
Colour Coded to Match Voltage Indicators
Suitable for Multimeters, voltage testers & Drummond test lamps Multimeters, voltage testers & Drummond test lamps Multimeters, voltage testers & Drummond test lamps
