Martindale PD240

Regular price £59.50 £0.00

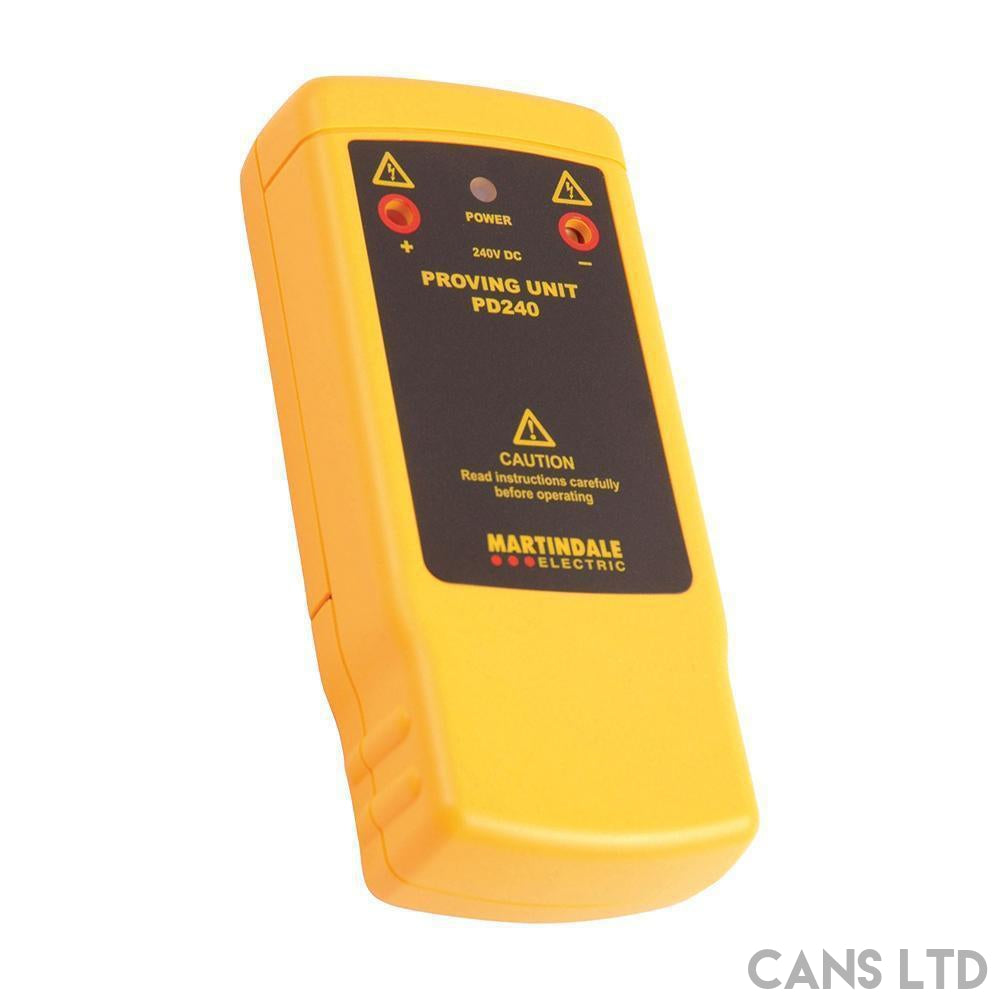

This is a convenient pocket-sized, battery powered proving device that produces a 240V DC output. Any device used for voltage detection and for proving dead should be tested before and after use to ensure the safety of the operative.

The PD240 current is limited to 2mA and is suitable for use with multimeters and other voltage detectors that have an input impedance greater than 120KΩ. It has a long battery life and comes complete with a belt clip.


Output voltage 240V DC
Output current 2mA max across 120kΩ, 3.5mA max, short circuit protected
Battery 6LR61/MN1604/PP3 (included)
Body flame retardant ABS
Weight 180g (incl battery)
Dimensions 144 x 63 x 31mm


  PD240 PD430 PD440
Maximum Voltage Output 240V DC 440V AC 440V AC
LED Voltage Thresholds 240V 50V, 440V 440V
High Voltage LED
Low Battery LED
High/Low Z Compatible
Suitable for Multimeters & voltage testers (>120kΩ) Multimeters, voltage testers & Drummond test lamps Multimeters, voltage testers & Drummond test lamps
