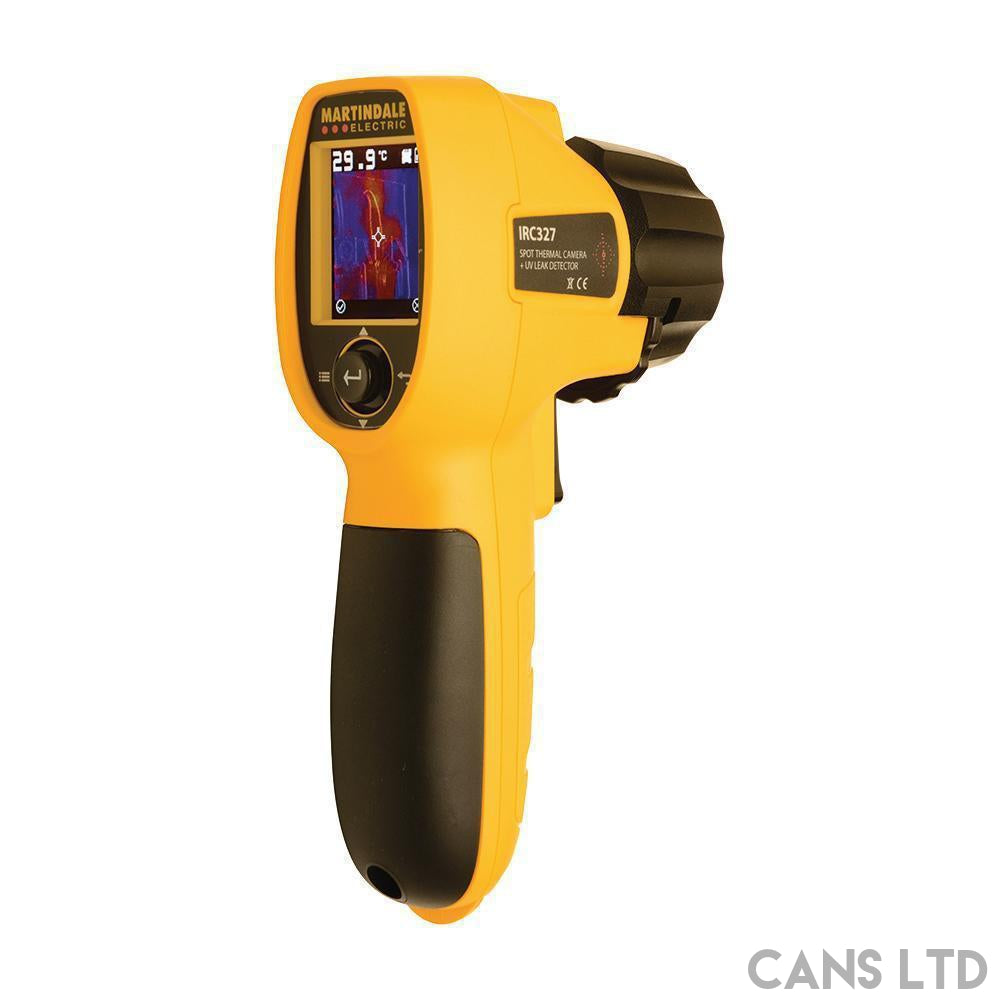

Martindale IRC327 Thermal Camera



The new IRC thermal imaging cameras from Martindale Electric represent a breakthrough in affordable thermal imaging for troubleshooting of electrical and mechanical installations.

The combination of real time thermal imaging with spot infrared temperature measurement, packaged in a rugged pistol design, make it the ideal tool for electricians and maintenance teams needing fast on-site diagnostics. The cameras show hot and cold spots at a glance and accurately measure spot temperatures of hot and hard to reach surfaces.

The thermal images, displayed on the 4.5cm colour display, combine colour temperature gradients and component outlines to quickly troubleshoot problems, be it poor electrical connections, phase unbalance or faulty motors and bearings. The IRC327 includes an infrared spot thermometer making it easy to accurately and safely measure the temperature of hot and hard to reach surfaces without contact. The extended temperature range makes it suitable for measurements from -30°C to +650°C.

The advanced design of IRC327 allows simple capture and storage of the image to the SD card for evaluation and reporting and images can be downloaded directly via the micro USB port. In addition, laser targeting and the 5 LED torch make it easy to get reliable measurements wherever you are working. The built-in lens cover of the IRC327 provides protection for all environments.

The new camera can be used for a wide range of applications from identifying sources of heat loss to reduce energy bills, through to checking the correct functioning of heating and ventilation systems. The point and shoot design is easy to use and enables users to get up and running without the need to navigate complicated menus. The IRC327 allows simple setting of emissivity and choice of colour palettes for enhanced diagnostics.

The IRC327 also includes a simple UV leak detector function which, for example, can be used to reliably detect leaks in cooling and air-conditioning systems when a suitable UV indicator dye is used.

Featuring a lightweight pistol shape design for comfort and easy access to functions, the new thermal imaging cameras from Martindale offer an ideal and affordable solution for busy electricians and maintenance teams to troubleshoot problems quickly and identify potential maintenance issues early.


Temperature range -30ºC to 650ºC (-22ºF to 1202ºF)
Temperature resolution 0.1ºC (0.2ºF)
Temperature accuracy ≥ 0ºC ± 1.5ºC or 1.5% of rdg
Emissivity settings 0.95, 0.80, 0.60, 0.30, or variable 0.10 to 0.99
Distance spot ratio 30:1
Type IR-EX™ Technology (Integrated IR Array with CMOS Sensor)
Imaging resolution 16,384 pixels (128 x 128 pixels interpolated)
Field of view (H x W) 33º
Thermal imaging sensitivity 150mK
Colour palette Greyscale, Hot iron, Rainbow
Display 4.5cm colour TFT (128 x 160 pixels)
Laser Laser product class 2
Output power 1mW max.
Micro SD card 2 GB card fitted, maximum card size 32GB
Supply 3 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A)
Battery life 12 hours typical
Auto power off settable to 1, 2, 5 or 10 minutes
Dimensions 185 x 54 x 104 mm
Weight 300g approx. incl batteries
Includes 3 x 1.5V AA batteries, 2GB micro SD card and manual
