Martindale IRC325 Thermal Camera - CANS LTD
Martindale

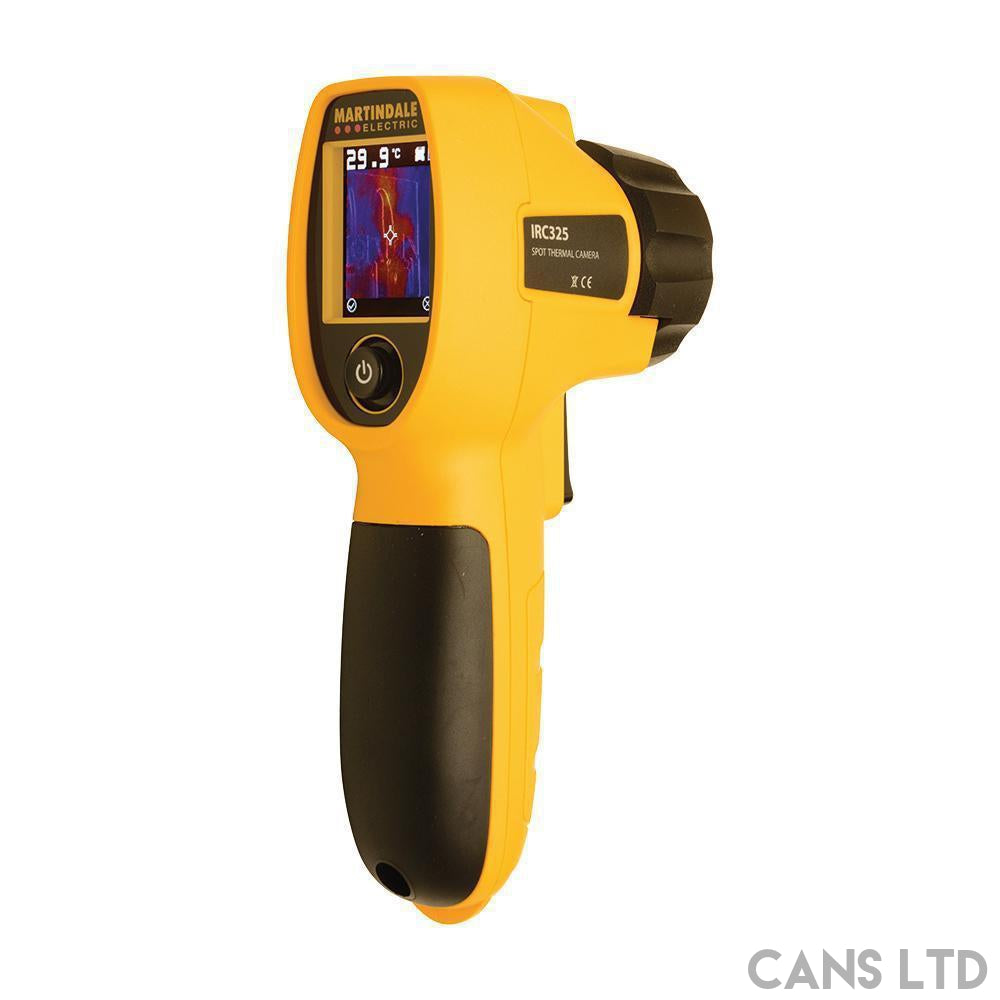

Martindale IRC325 Thermal Camera

Regular price £167.99 £0.00

Description

The new IRC thermal imaging cameras from Martindale Electric represent a breakthrough in affordable thermal imaging for troubleshooting of electrical and mechanical installations.

The combination of real time thermal imaging with spot infrared temperature measurement, packaged in a rugged pistol design, make it the ideal tool for electricians and maintenance teams needing fast on-site diagnostics. The cameras show hot and cold spots at a glance and accurately measure spot temperatures of hot and hard to reach surfaces.

The advanced thermal images, displayed on the 4.5cm colour display, combine colour temperature gradients and component outlines to quickly troubleshoot problems, be it poor electrical connections, phase unbalance or faulty motors and bearings. The IRC325 includes an infrared spot thermometer making it easy to accurately and safely measure the temperature of hot and hard to reach surfaces without contact up to 380°C.

The point and shoot design is easy to use and enables users to get up and running without the need to navigate complicated menus.

Specifications

Temperature range -20ºC to 380ºC
Temperature resolution 0.1ºC
Temperature accuracy ≥ 0ºC ± 1.5ºC or 1.5% of rdg
Emissivity setting 0.95
Distance/spot ratio 15:1
Thermal imaging type IR-EX™ (Integrated IR Array Sensor with CMOS)
Imaging resolution 16,384 pixels (128 x 128 pixels interpolated)
Field of view (H x W) 33º
Upper sense range 380ºC
Thermal imaging sensitivity 150mK
Colour palette Rainbow
Display 4.5cm colour TFT (128 x 160 pixels)
Supply 3 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A)
Battery life 16 hours typical
Auto power off after 5 minutes
Dimensions 185 x 54 x 104 mm
Weight 250g approx. incl batteries
Includes 3 x 1.5V AA batteries and manual
