Martindale HPAT600/2 Pat Tester

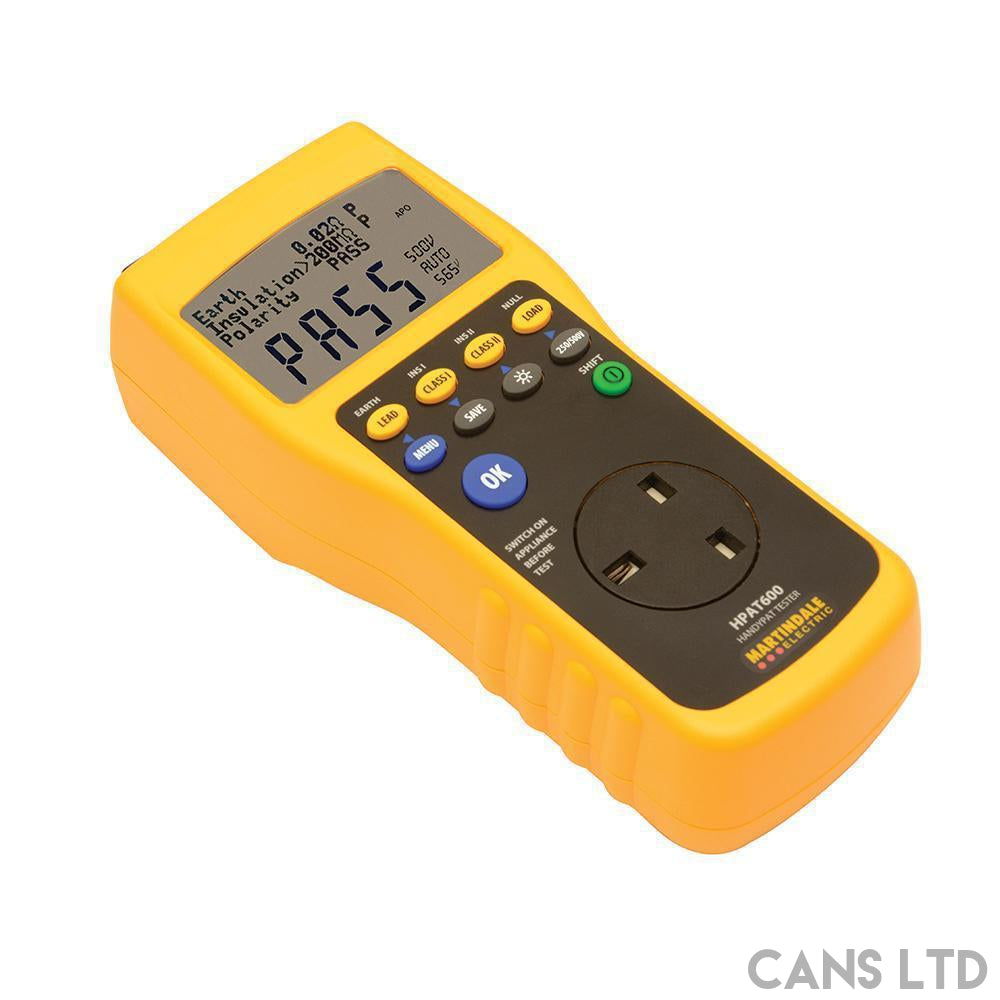

The HPAT600 HandyPAT is an easy to use battery powered, hand held PAT tester that is ideal for testing all types of portable appliances. The tester is supplied with rechargeable batteries for low running costs and a mains and in-car charger for convenience. Whilst recharging, the HPAT can still be operated from the mains supply ensuring maximum productivity at all times.

It has a fast automatic one button test sequence or a simple to operate manual mode useful for diagnostics and can be used for testing both 240V and 110V appliances with the optional TL157 adaptor lead.

In automatic mode, the HPAT600 will routinely run through a selected test sequence without any further user interaction unless a failure is encountered. In manual mode, a connection diagram for the selected test type is shown on the display and each step of a test requires user confirmation by a press of the OK button.

The user can select either the standard 500V insulation test or a 250V option which is required for testing appliances with surge protected circuits. The pass levels can also be adjusted which is particularly useful for testing appliances with long power cords or long extension leads. The HPAT600 stores test data for up to 200 appliances for on-screen recall, making it easy to review earlier results when on-site. This function is not for downloading to a PC. In addition to the mandatory safety tests, the HPAT600 can also be used to carry out a simulated load test to check the appliance is in working order and to confirm the integrity of the fuse

HPAT600 delivery contents include an extension lead adaptor, an earth bond probe with clip, a mains charger, 6xAA rechargeable batteries and a “Test & Go” carry case with separate pocket for accessories. In addition, the HPAT600 also includes an in-car charger and a handy null pin key fob.

A comprehensive range of optional adaptor leads are available enabling 110V appliance testing and testing of equipment terminated with 3 phase plugs.

The HPAT600/2 has a new high contrast backlit display.


  • Compact portable design with backlit display
  • Class I, Class II & power lead tests
  • Automatic and manual testing with adjustable limits
  • Measured values with clear PASS/FAIL indication
  • Suitable for testing 240V and 110V appliances
  • Simulated load test
  • Built-in memory for on-screen recall of results
  • I.T. safe 200mA earth bond test
  • Selectable 250V / 500V insulation test
  • Includes carry case, mains & in-car chargers and essential accessories



Earth continuity Test current: 200mA DC


Range: 0-19.99Ω

Resolution: 0.01Ω

Accuracy: ± (5% rdg + 2 dgt)

Default pass level: Class I ≤ 0.1Ω, Lead ≤ 0.1Ω

User selectable pass levels: 0.1Ω to 0.9Ω in 0.1 steps

Insulation Test Voltage: 250V/500V DC selectable


Test current: 1.5mA

Ranges: 2.00MΩ, 20.0MΩ, 200MΩ

Resolution: 0.01MΩ

Accuracy: <100MΩ ± (5% rdg + 2 dgt), >100MΩ ± (10% rdg + 2 dgt)

Default pass level Lead: ≥ 1.0 MΩ


Class I: ≥ 1.0 MΩ

Class II: ≥ 2.0 MΩ

User selectable pass level 0.3MΩ to 1MΩ in 0.1MΩ steps


1MΩ to 10MΩ in 1MΩ steps

Fuse test Voltage: 4V DC (open circuit)


Current: 200mA DC (short circuit)

Pass level: >2mA

Simulated load test Voltage: 4V DC (open circuit)


Current: 200mA DC (short circuit)

Accuracy: ± (5% rdg + 2 dgt)

Overload protection 300V AC/DC
Complies with BS EN 61010
Temperature range -10 to 40°C
Supply 6 x 1.2V AA NiMH rechargeable batteries 1800mAh
Dimensions 90 x 210 x 54mm
Weight 700g (inc batteries & leads)

TC57 carry case, PSUHPAT230 mains charger, rechargeable batteries, EX332 IEC lead, TL67 earth bond probe, PSUHPAT12 in-car charger, earth null adaptor and manual



  HPAT400 HPAT500/2 HPAT600/2
Class I /II Test
Lead Test
Pass/Fail Indication
Test Values Displayed
Selectable Limits
Test Mode Auto Auto Auto/Manual
Run Test Simulated
Earth Continuity Test Current 200mA 200mA 200mA
Insulation Test Voltage 500V 250/500V 250/500V
110V Appliances With accessory With accessory With accessory
Memory 200 results for on-screen recall
Supply Alkaline batteries Rechargeable Rechargeable
