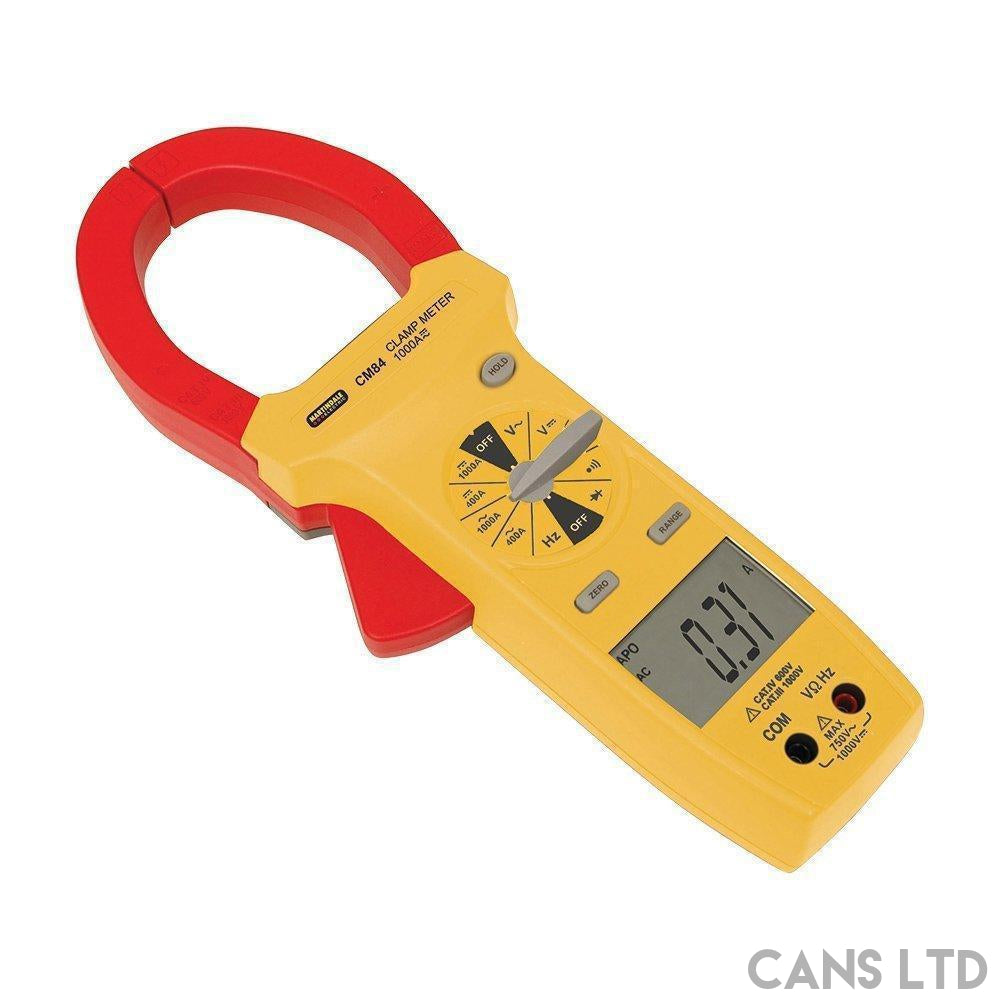

Martindale CM84 Clampmeter

Regular price £132.00 £0.00

Description

The CM84 is a high specification 1000A clamp meter, packed full of functions for the installation, testing and maintenance of domestic and industrial installations. It is light enough for easy one handed operation but still robust enough for use in harsh environments.

This compact meter provides accurate measurement of AC voltage to 750V, DC voltage to 1000V and AC current to 1000A. It has the same test functions you would find on a high specification multimeter making this clamp a comprehensive testing solution for electricians, maintenance and service engineers.

This has the added benefit of DC current measurement to 1000A and has a useful DC current zero function.

Video

Specifications

Current AC 0.1A to 1000A (2 ranges)
Accuracy 2.0% rdg + 6 dgt (≤600A) 50Hz to 60Hz



2.5% rdg + 6 dgt (>600A) 50Hz to 60Hz

Current DC 100mA to 1000A
Accuracy 2.0% + 5 dgt (≤600A)



3.0% + 5 dgt (>600A)

Voltage AC 0.1mV to 750V, autoranging (50Hz to 500Hz) (5 ranges)
Accuracy 1.5% rdg + 5 dgt
Voltage DC 0.1mV to 1000V autoranging (5 ranges)
Accuracy 0.5% rdg + 2 dgt
Resistance ranges 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Resolution 0.1Ω
Accuracy 1.0% rdg + 5 dgt to 400kΩ



2.0% rdg + 5 dgt on 4MΩ

3.5% rdg + 5 dgt on 40MΩ

Frequency 0.001 kHz to 1 MHz
Continuity buzz at <25Ω
Maximum conductor 55mm diameter or 70 x 18mm bus bar
Features Diode test
Dimensions 281 x 108 x 53mm
Weight 570g approx. incl battery
Includes TL16 leads, TC68 case, battery and manual

Comparison

  CM82 CM84 CM87
AC Current
DC Current
AC/DC Volts
Ohms
Frequency
Capacitance
Non-contact Voltage Detector
Auto ranging
Max Conductor Size 50mm Ø
70x18mm
55mm Ø
70x18mm
55mm Ø
70x18mm
True RMS
Min Max
Backlight
Auto Power Off
Other Inrush
Temperature
Safety CAT IV 600V CAT IV 600V CAT IV 600V
