Martindale CM51 Clampmeter - CANS LTD
Martindale

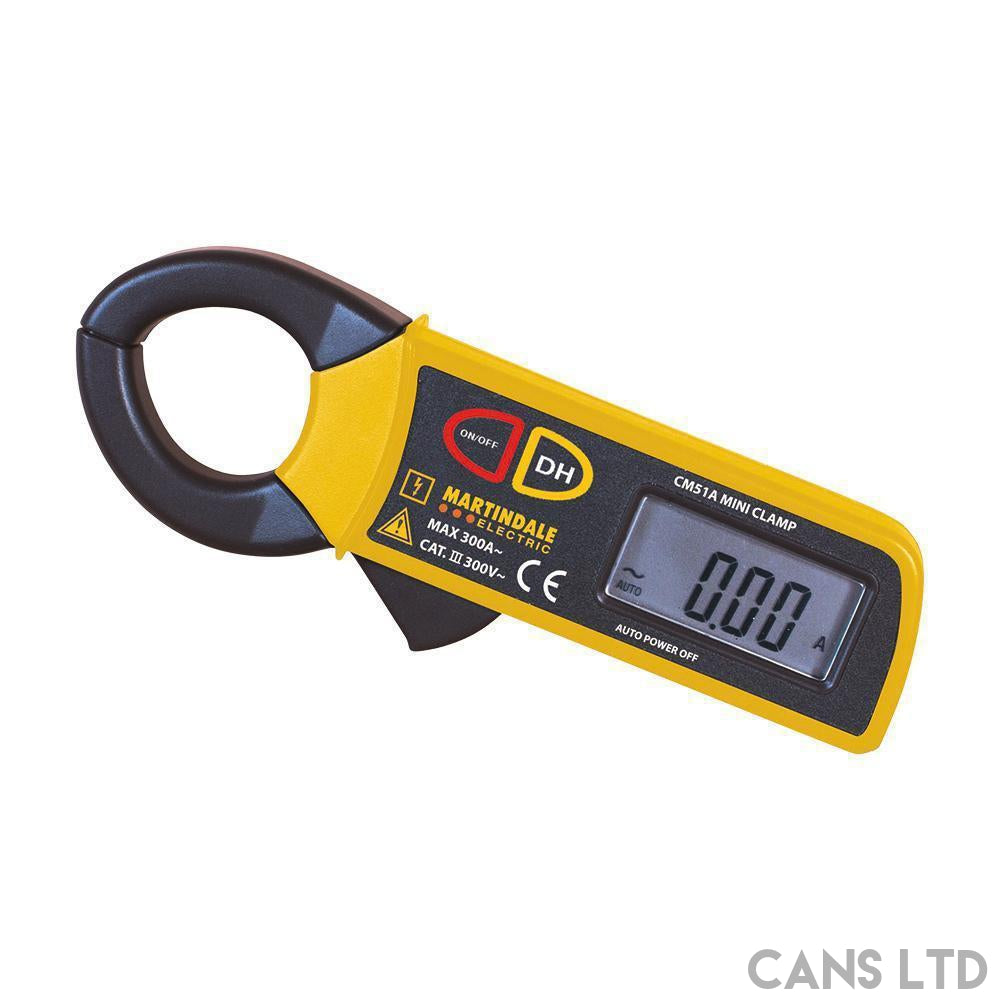

Martindale CM51 Clampmeter

Regular price £44.50 £0.00

Description

The CM51 is a high accuracy, current only mini AC clamp meter. This compact clamp is small enough to fit in a shirt pocket and with resolution down to 10mA is ideal for residential and commercial applications.

This low cost auto ranging clamp meter has a jaw diameter of 27mm and is useful tool for electricians, maintenance teams and installers.

The clamp has a useful Data-hold feature to freeze the displayed value when used in difficult to access locations where the display may be difficult to read. There is also an auto power off function and the clamp is supplied with a manual, battery and a soft carry case.

Video

Specifications

Display 3¾ digit LCD display with annunciators
AC A 40.00A/300.0A (40Hz to 500Hz)
Accuracy ± 1.8% rdg ± 5 dgt, 50-60Hz
Max conductor 27mmØ
Operating temperature & humidity 0°C to 40°C, less than 80% RH.
Weight 110g
Dimensions 150 x 52 x 24mm
Includes case, battery and manual

Comparison

  CM51 CM55 CM57
AC Current
DC Current
AC/DC Volts
Ohms
Frequency
Capacitance
Non-contact Voltage Detector
Auto ranging
Max Conductor Size 27mm Ø 25mm Ø
35x15mm
25mm Ø
35x15mm
True RMS
Min Max
Backlight
Auto Power Off
Other
Safety CAT III 300V CAT III 600V CAT III 600V

Specifications

Download



Manual

Download
