Regular price £0.00 £0.00


The KT66DL multifunction tester, combined with our ACCES earth spike kit, is the most cost effective way to obtain an instrument that will test TN, TT and independent earthing systems.

The spike kit fits into the KT66DL carry case so everything can be kept together in one place.

The KT66DL comes with CD-ROM software but if you would prefer to download the KEW REPORT software you can do so here…Download Software.


  • Large colour dot matrix screen
  • Established easy to use interface with one rotary dial and four function keys
  • Includes ACCES earth spike kit for earth resistance testing
  • Simultaneous display of L-N, L-N, L-E voltage (TRMS)
  • Max Zs tables for current and old standards
  • Comprehensive RCD function including type EV & B and variable RCD test
  • Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
  • Advanced memory - assigns DB, circuit no. ad type of test i.e. Zs or Ze
  • Help display
  • Touch voltage pad with selectable limits
  • Padded neck strap

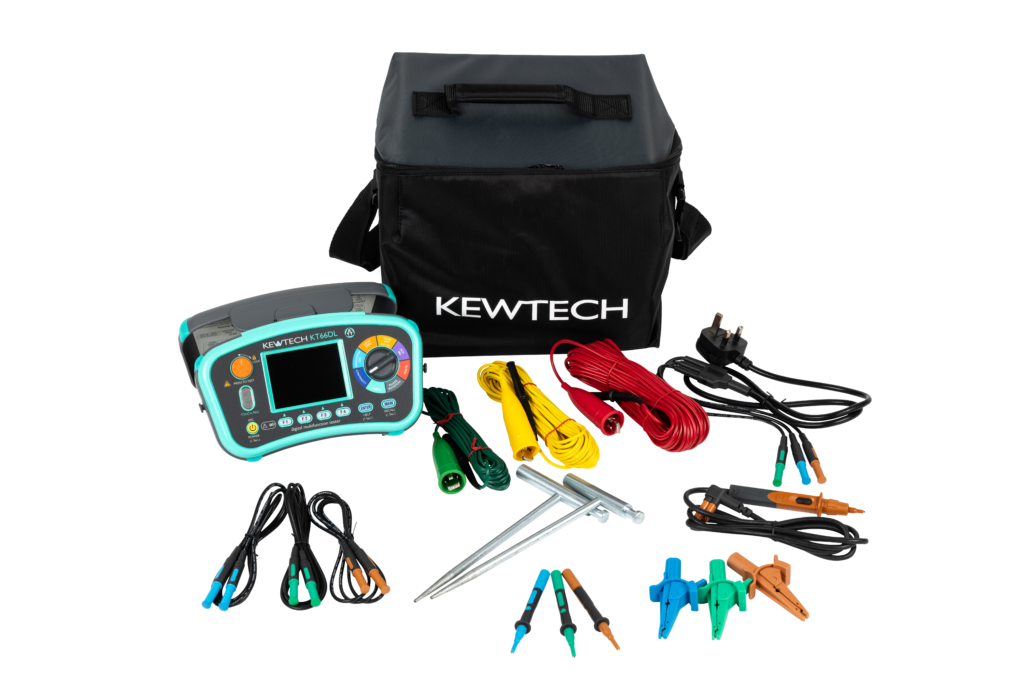

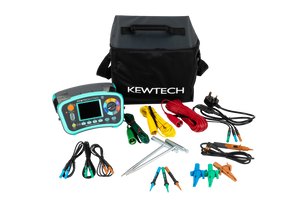

  • Comes complete with KT66DL, KEWEVSE, soft canvas bag, mains lead, DB leads, remote test probe and software
  • Compatible with optional KEWEVSE adapter for testing EVSE charging points


  • Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
  • Two low current loop options: 3 wire & 2 wire
  • 55V loop test capability - suitable for 110V CTE systems
  • EVSE loop option
  • RCD - Tests Type AC, ACS, A, AS, F, B, BS & EV
  • EVSE 6mA DC ramp and tripping time test
  • UC - contact voltage test
  • Insulation test function with PI
  • Two continuity tests 200mA & 15mA
  • Surge protection device test
  • Earth resistance 3 & 2 wire options
  • Phase rotation
  • True RMS Voltage measurements 2-600V, mains frequency
  • PAT function including download
  • Advanced memory
