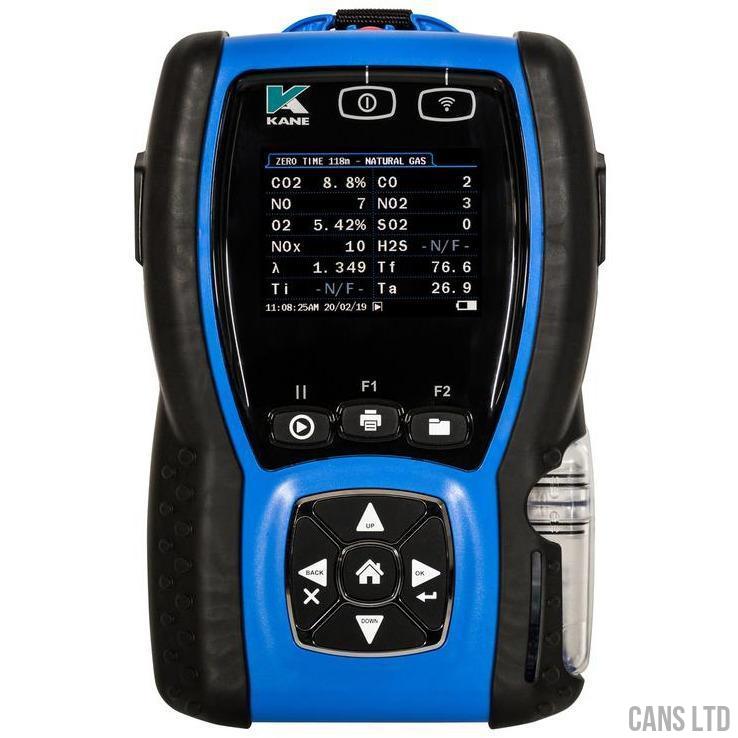

Kane 975
Regular price
£1,271.25
KANE975
KANE975
- Latest Flue Gas Analyser technology with options for up to 7 gas measurements CO (0-10,000 ppm), CO2, O2, NO, NO2, SO2 & H2S
- Ideal for larger installations
- Built in over-range protection
- Prevents sensor damage
- Intuitive user keypad and buttons
- For ease of use
- Large full colour graphic display
- Customise to suit your requirement
- Gas Trend Screens
- Display up to 4 parameters simultaneously ideal for long term monitoring
Features
- Low energy wireless module
- Infra-red printer link with customised printer header
- Logs & stores up to 40,000 test results for easy transfer to PC
- Long life battery recharged in situ
- High suction double headed pump, ideal for high stack pressure in large chimneys
- Supplied with Teflon lined flue probe
- Heavy duty waterproof case with custom foam insert
Application
- Installation, commissioning & servicing of industrial/commercial oil, gas or biomass appliances
- Safety checks
- CO in a room or around an appliance
- Combustion performance checks
- Combustion efficiency checks
- Flue Draught
Measures
- O2 0-21%
- CO 0-10,000ppm (hydrogen compensated)
- Differential pressure
- Temperature - inlet / flue gas / differential / ambient
* Choose up to 5 additional sensors
-
- CO 0-10%
-
- CO2 0-20%
-
- NO 0-5,000ppm
-
- NO 2 0-1,000ppm
-
- SO 2 0-100ppm
-
- SO 2 0-5,000ppm
-
- H2S 0-200ppm
Calculates
- CO2 - 0-99%
- CO/CO2 ratio
- Excess air
-
- NOx (if NO sensor fitted)
- Combustion efficiency
Fuel Types
- Natural Gas (x2)
- Wood Pellets
- Kinsale Gas
- Heavy oil
- LPG
- Coal
- Town Gas
- Bio Gas
- Gascor
- Propane
- User fuel (x5)
- Anthracite
- LPG
- Butane
- Coke
- 28 sec oil
Box Contents
- Analyser
- Probe
- Pressure connectors
- Charger
- Quick reference guide
- Calibration report
- Heavy duty case
Sensor Options
- H2S 0-200ppm
- High range CO sensor instead of standard CO sensor
- NO 2 sensor in place of any other toxic gas sensor
- SO 2 sensor in place of any other toxic gas sensor
- CO 2 Infra-red sensor: range 0-20%
Specifications
| Temperature / Pressure Measurement | Resolution | Accuracy | Range |
|---|---|---|---|
| Flue Temperature | 0.1°C | ±1°C | -50 - 1200°C with suitable probe |
| Inlet Temperature | 0.1°C | ±1°C | 0 - 50°C |
| Pressure | 0.1mbar | ±0.5% full scale | 150 mbar |
| Gas Measurement*1 | Resolution | Accuracy | Range |
|---|---|---|---|
| Oxygen | 0.1% | ±0.3% | 0-25% |
| Carbon Monoxide H2 compensated |
1ppm | ±5ppm < 100ppm ±20ppm < 400ppm ±5% > 400ppm - 2000ppm ±10% > 2000ppm - 10000ppm |
0-10000ppm 10000 - 20000ppm for 15 mins |
| Carbon Monoxide High Range (optional) |
0.01% | ±5% of reading from 0.1% to 10% | 0 - 10% |
| Hydrogen Sulphide | 1ppm | ±5ppm < 100ppm ±5% > 100ppm |
0-200ppm |
| Nitric Oxide (optional) |
1ppm | ±5ppm < 100ppm ±5% > 100ppm |
0-5000ppm |
| Nitrogen Dioxide (optional) |
1ppm | ±5ppm < 100ppm ±10ppm < 500ppm ±5ppm > 500ppm |
0 - 1000ppm |
| Sulpher Dioxide (optional) |
1ppm | ±5ppm < 100ppm ±5% > 100ppm |
0 - 5000ppm |
| Carbon Dioxide Infra-red (optional) |
0.1% | ±0.3% reading | 0 - 20% |
| Carbon Dioxide*2 | 0.1% | ±0.3% reading | 0 - 99.9% |
| Losses*2 | 0.1% | ±1.0% of reading | 0 - 99.9% |
| Efficiency*2 | 0.1% | ±1.0% of reading | 0 - 120% |
| Excess Air*2 | 0.1% | ±0.2% | 0 - 2885.0% |
| Temp (Nett)*2 | 1.0°C/F | ±2°C ±0.3% reading | 0 - 1200°C/32 - 2200°F |
| CO/CO2 ratio*2 | 0.0001 | ±0.0001 | 0 - 0.9999 |
| Poison Index*2 | 0.01% | ±0.01 | 0 - 99.99 |
| Pre-programmed Fuels | Natural Gas (x2), Town Gas, Gascor, Light Oil, Heavy Oil, Propane, Butane, Anthracite, Coke, Coal, Kinsale Gas, User Fuel (x5) |
|
Dimensions Weight Handset Probe |
1.2kg 240mm x 165 x 65 Dia 8mm with 285mm long stainless steel shaft, type K thermocouple & 3m long neoprene hose |
| Ambient Operating Range | -5°C to +50°C/10% to 90% RH non condensing |
| Power Supply (battery charger) | Input: 110Vac/220 Vac nominal Output 12 Vac off load |
| Battery Life | >6 hours from full charge |
*1 Using dry gases at STP
*2 Calculated
