Chauvin Arnoux CA6240 Microhmmeter - CANS LTD
Chauvin Arnoux

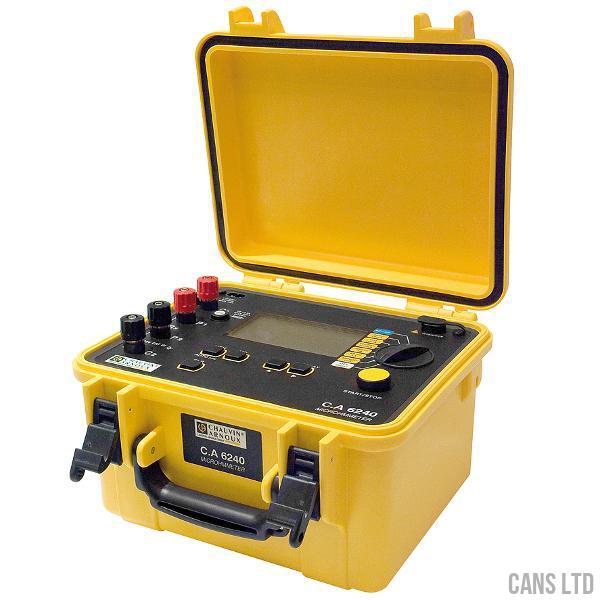

Chauvin Arnoux CA6240 Microhmmeter

Regular price £1,552.60 £0.00

Rugged and leakproof, the C.A 6240 is a top-of-the-range product designed for on-site, workshop or laboratory use.

It is ergonomic, lightweight and compact.Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements. The automatic measurement mode allows measurement to be triggered without pressing a button.
An automatic recording mode is also available.

C.A 6240 technical specifications:

  • 4-wire measurement method
  • Measurement ranges from 400 µΩ to 400 Ω
  • Test current up to 10 A
  • Max. resolution 1 µΩ
  • Automatic power off
  • Power supply: NiMH rechargeable battery
  • Storage: 100 measurements
  • Communication via USB optical link
  • Data export software
  • IP53 protection
  • Electrical safety: IEC 61010-1 CAT III 50 V
  • Dimensions: 273 x 247 x 280 mm
  • Weight: 5 kg

To make them easier to use and to permit new applications, new retractable 10 A KELVIN test probes are now available as accessories.

"Pistol" test probes

  • Handle dimensions 108 x 40 mm, test probe 154 x 30 mm, thickness 28 mm
  • Test probe diameter 2 mm
  • Test-probe spacing 3.5 mm
  • Cable length 3.15 metres
  • Spade lugs for Ø 4 to 6 mm
  • Safety connectors Ø 4 mm
  • Weight approx. 2 x 420 g

Kelvin test probe with rotation

  • Dimensions (L x W x H) 207 x 34 x 30 mm
  • Test-probe diameter 3 mm
  • Test-probe spacing 8 mm
  • Test-probe extension/retraction 10 mm
  • Cable length 3.15 metres
  • Spade lugs for Ø 4 to 6 mm
  • Safety connectors Ø 4 mm
  • Weight approx. 2 x 400 g
  • Resistance 2 x 50 mΩ max.
