Martindale VIPDLOKPRO150

CALL FOR PRICE

Description

The ultimate solution for safe isolation, the Martindale VIPDLOKPRO150 lock out kit contains the VI-15000 voltage indicator, matching PD690 proving device and LOKKITPRO which contains the full range of Martindale locking off devices, all supplied in two convenient soft carry cases. The kit simplifies compliance with Health & Safety recommendations for safe working practices when maintaining or installing electrical plant and equipment. The new VI-15000 has a 1000V CAT IV safety rating and LED indication for AC/DC voltages from 50V to 690V, ensuring compliance with health and safety recommendations for safe working in all BS EN61010 installation categories. For more information on staying safe and choosing test equipment to match the safety installation category where you are working see our simple guide.

The new LOKKITPRO is the ultimate lock out kit enabling safe isolation procedures to be carried out in all types of facility. The kit is ideal for contractors and maintenance teams working on industrial and commercial sites as it includes the full range of Martindale locking off devices, compatible with all distribution boards and red spot type fuse holders. It includes the latest LOK7 slimline mcb lock for use on breakers where the position of the test button may prevent the use of conventional lock outs or access is restricted, plus a 1m cable lock device suitable for both electrical and mechanical locking out and a steel hasp for use with multiple padlocks for when more than one operator is working on the same installation. Multi-lock hasps ensure a circuit cannot be re-energised until each operator has finished work and removed their own padlock.

Nothing is more dangerous than trusting a defective voltage indicator to test for a dead circuit. Safe electrical work requires the use of a voltage indicator that has been proved with a proving unit before and after use.

The VI-15000 voltage indicator and matching PD690 proving unit are supplied in the TC69 combination carry case, keeping them together to ensure that the proving device is always at hand. For convenience and to save time, the Test & Go carry case allows use of the proving unit without having to remove it from the case each time. Martindale VIPDLOK and VIPDLOKPRO kits provide the simplest solution for implementing safe isolation practices on-site in accordance the Electricity at Work Regulations. The VI-15000 is the perfect voltage indicator for safe isolation, it’s safe because it’s simple with no ranges, switches or batteries to worry about, reducing the risk of a failing to identify a live voltage.

The PRO lock out kit is compatible with all distribution boards and includes all Martindale locking out devices, ensuring you are never stuck on-site without the right device to implement safe isolation. Spare and replacement individual lock off pieces are also available to order separately.

The kit comprises of 14 different locking devices for simple fitting to all MCBs, RCBOs and fuse holders. There is a plastic body padlock with unique key and a 6mm hardened steel shackle for securing the locking devices. The kit is completed with 5 warning tags, a marker pen and a durable case with space for storing additional accessories.

Video

Specifications

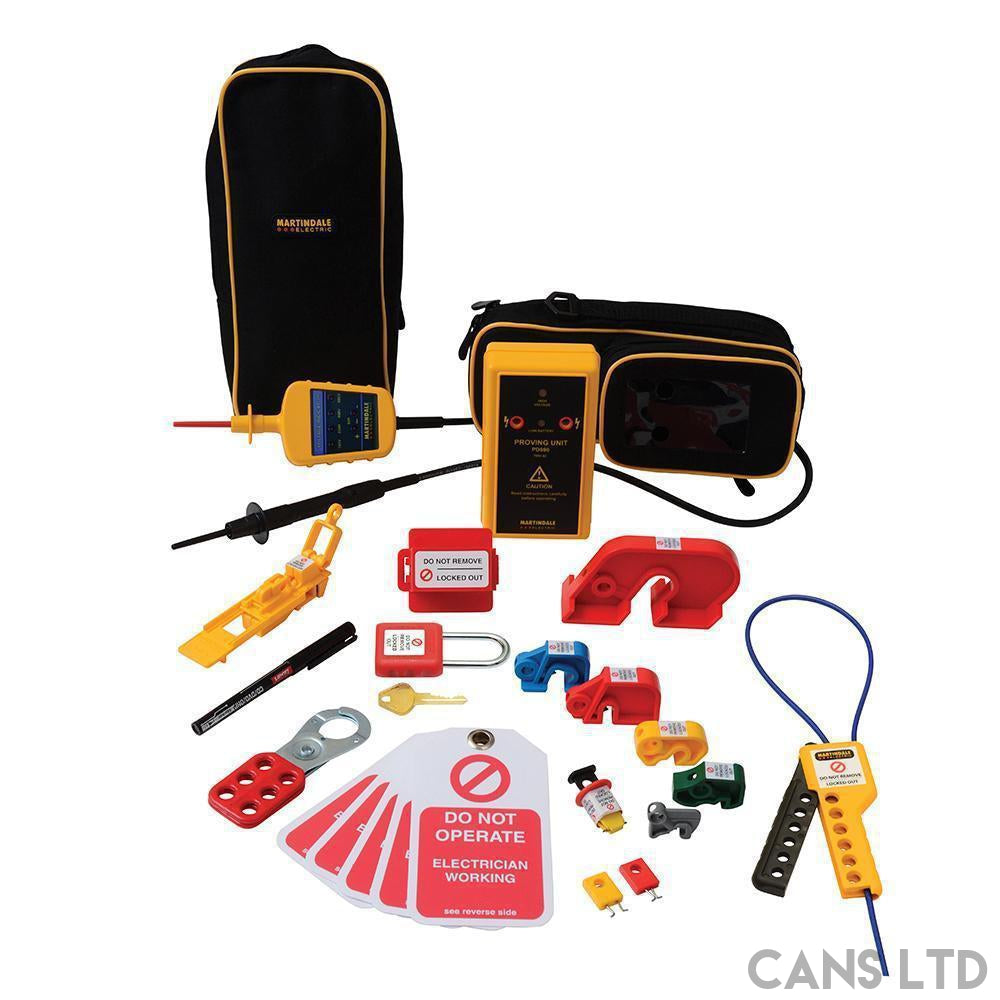

The full 20 piece kit includes:
PD690 Proving device
VI-15000 Voltage indicator
PAD11RD Padlock with unique key
CABLOK Cable lock-off
LOKMCB MCB Isolation lock kit (LOK1-LOK5)
LOK6 Cartridge fuse isolation lock
LOK7 Slimline grey isolation lock
LOK10 Yellow MCB lock, 10mm clip
LOK11 Red MCB lock, 8mm clip
LOK15 Plunge locking piece
LOKHASP25 Hasp
PL13 Appliance lock out
LOKMP Black marker pen
5 Locked out tags
TC68 Soft carry case
TC69 Soft carry case

Comparison

  VIPD150 VIPLOK150 VIPDLOKPRO150
VI-15000 Voltage Indicator
PD690 Proving Unit
TC69 Combination Carry Case
LOKKIT1 12 Piece Kit
LOKKITPRO 17 Piece Kit
