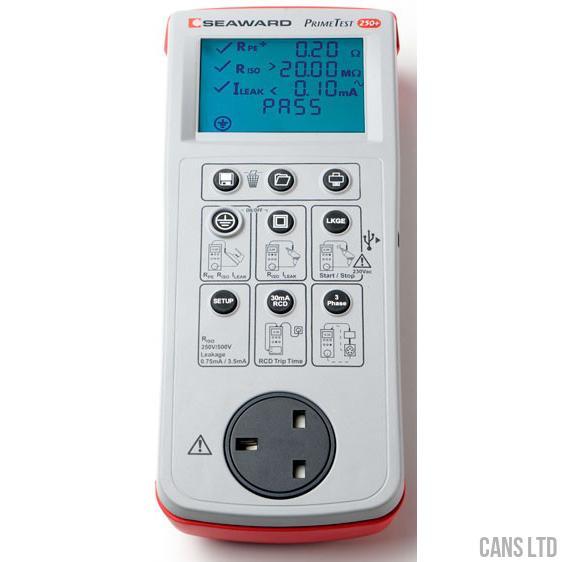

Seaward PrimeTest 250+ PAT Tester

CALL FOR PRICE

One of the smallest PAT testers on the market!

An excellent value simple-to-use PAT specialist with a comprehensive array of tests, data storage and label printing features.
The PrimeTest 250+ offers fast and efficient electrical safety testing with label printing and data storage.
Allowing simple, professional and fast PAT testing, this flexible tester features all of the required tests of the IET 4th Code of Practice along with USB download. It is also fully compatible with the new ‘Test n Tag‘ Pro serial printer for quick and easy label printing – no setup is needed, simply plug and print.

Key Features

  • Very easy to use
  • Plug and print - easy label printing with no setup
  • Date stamped results for full traceability
  • Single key save
  • Single key download
  • Download software included
  • Store 999 appliance records
  • Industry standard download format
  • Comprehensive range of electrical tests
  • Test 3 phase appliances

Where the number (and variety) of appliances increases, the Primetest 250+ provides a wider range of tests (mains leakage tests, reduced voltage insulation resistance test, 3-phase leakage, RCD test), the means to record results and to print labels.

Our Lead Trainer says –
The ability to run a 250V insulation resistance test is a real bonus on the Primetest 250+ for surge protected devices and IT equipment.  Has a useful warning of the test voltage on the Insulation Resistance test.  Well worth spending that little bit more for its enhanced capabilities when compared to the Primetest 100.

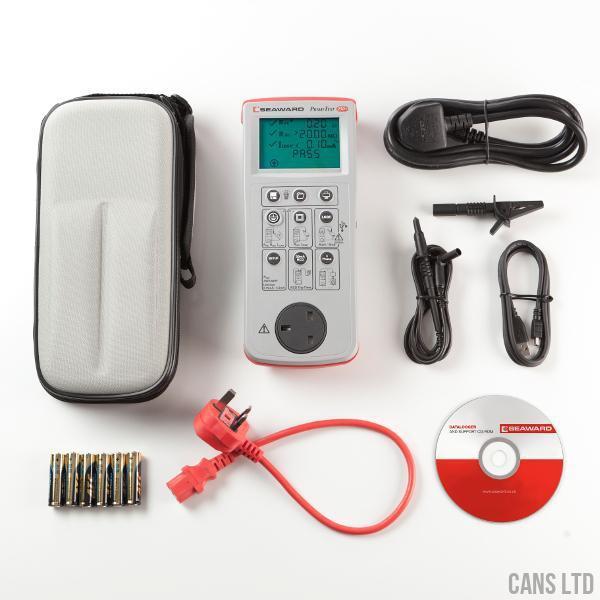

What‘s in the box:

  • Seaward Primetest 250+ PAT Tester
  • Datalogger software
  • 0.5m extension adaptor
  • Earth lead with probe and clip
  • Mains lead
  • 6 x AA batteries
  • USB download lead
  • Carry case
  • Operating instructions

Electrical Test Functions of the PrimeTest 250+:

  • Low current earth continuity test guaranteeing accurate measurement
  • Insulation resistance at 250/500V
  • IEC lead test
  • Protective conductor current
  • Touch current
  • 3 Phase leakage current (requires adaptor)
  • Alternative leakage current
  • RCD test (30mA/150mA)
  • Power socket test

A Seaward datalogger program comes as standard and this combined with single key down load feature allows measurement data to be quickly and easily transferred from the PrimeTest 250+ to your laptop or computer by simply pressing a button; whilst all records are stamped for complete traceability.

Info is downloaded in CSV format and can be accessed by a wide range software packages or alternatively brought in directly into PATGuard 3 Elite for truly professional certificates and reports.

As with all Seaward battery powered PAT testers, accurate earth continuity tests are a given thanks to the unique “zap” circuit design.

Fast, simple PAT Tests - Seaward‘s press to test technology!

The PrimeTest 250+ is incredibly simple to grasp. Its lightweight, small size along with battery power means it’s extremely portable. The PrimeTest 250+ offers a comprehensive suite of fast and accurate electrical safety tests to permit almost any workplace appliance to be tested, including accurate and reliable earth continuity tests, three-phase appliances and Residual Recent Devices.

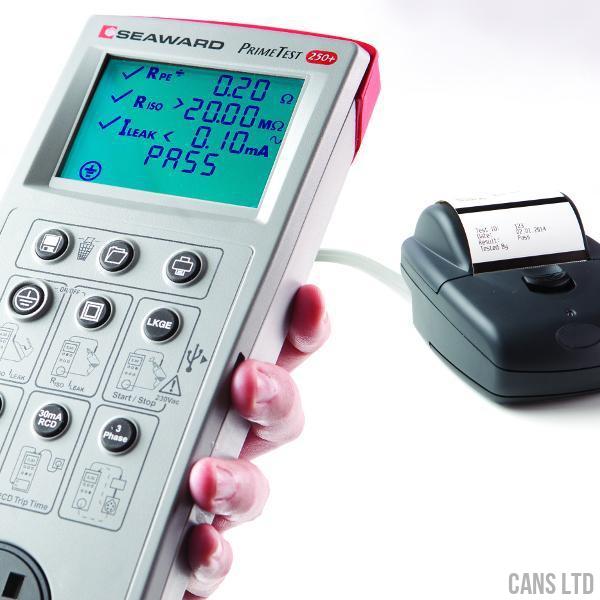

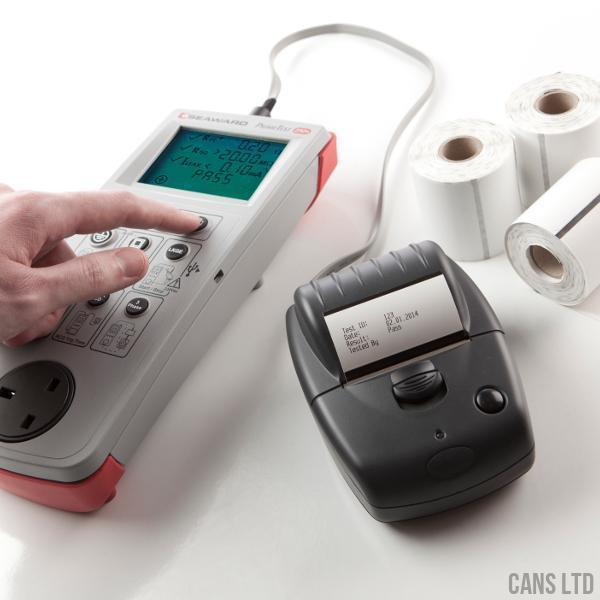

Plug and Print

The PrimeTest 250+ can be used with the new ‘Test n Tag‘  Pro serial printer to further accelerate process of testing and labelling and labelling.

The ‘Test n Tag‘ Pro label rolls provide over 400 high-quality labels enabling you to produce professional, low cost inspection and test labels – all at the push of a button!

Simple data management

PrimeTest 250+ has an internal memory space able to store up to 999 appliance test records.
Transfer data via a USB cable directly to your computer using data logger software supplied.
The data downloads in the industry standard CSV format and can be imported directly into spreadsheets or other applications.
Intended for those requiring professional certificates and reports, as well as complete data traceability and integrity, the downloaded data is also fully compatible with Seaward‘s PATGuard 3 Elite software; which allows complete test records to be easily managed on a PC - offering total peace of mind!

Accurate and reliable earth continuity testing

Some test instruments struggle to provide accurate and steady earth continuity readings but thanks to the unique ‘zap circuit‘ from Seaward, erratic earth continuity, on those difficult to test appliances, are a thing of the past.

Simply clip as well as press to test. No more pressing or scraping with test probes or clips on chrome plated kitchen appliances attempting to obtain a satisfactory reading.
