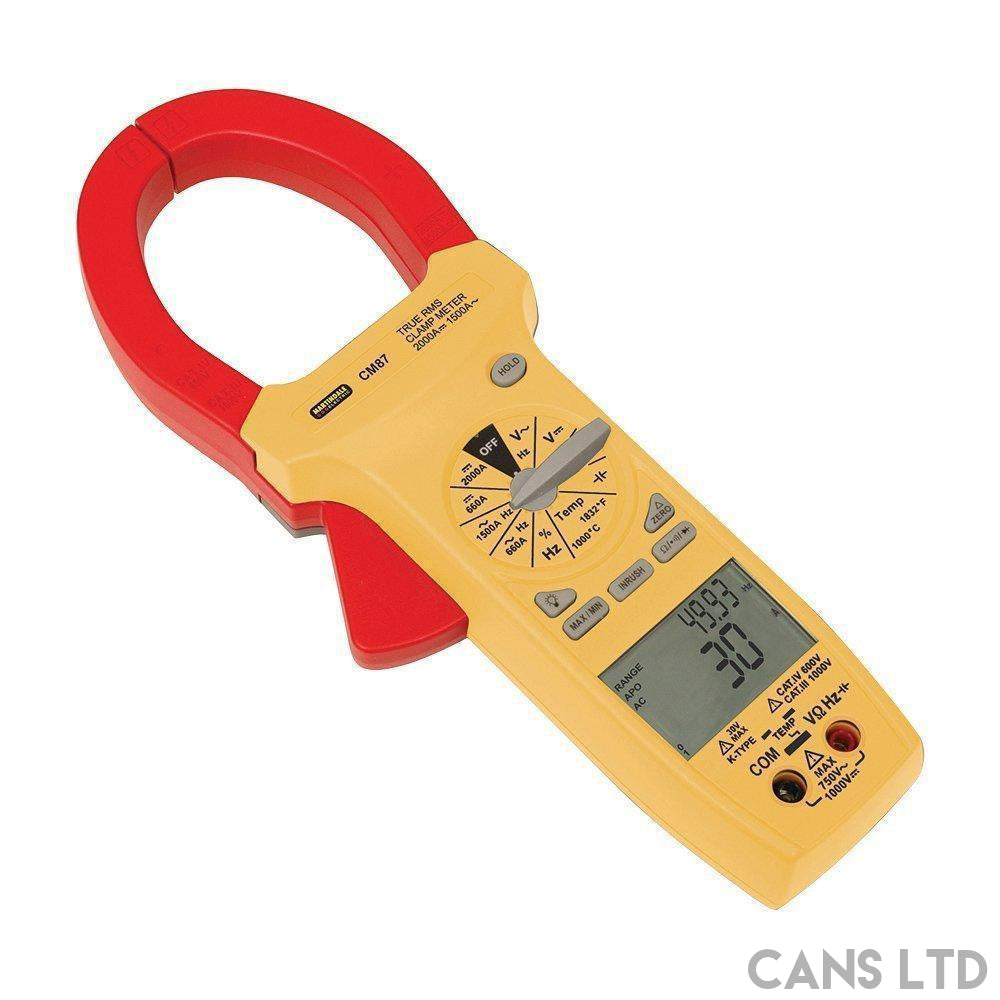

Martindale CM87 Clampmeter

Description

The CM87 is a high specification True RMS clamp meter, packed full of functions for the installation, testing and maintenance of domestic and industrial installations.

This robust clamp meter provides True RMS measurement of AC current up to 1500A and AC voltage to 750V. It will also measure DC current to 2000A and DC voltage to 1000V.

The CM87 shares all of the same features on the CM82/CM84 but has the added benefit of temperature measurement between -20°C to 1000°C and is supplied with a K-type thermocouple. It also has the same test functions you would expect to find on a high specification multimeter to make this a comprehensive testing solution for electricians, maintenance and service engineers.

Compatible with most of our K-type probes.

Video

Specifications

Current AC	True RMS 0.1A to 1500A
Accuracy	2.0% rdg + 10 dgt (≤660A) 50-60Hz
Current DC	100mA to 2000A
Accuracy	2.0% + 5 dgt (≤660A)
Voltage AC	true RMS 0.001V to 750V, autoranging
Accuracy	1.5% rdg + 8 dgt
Voltage DC	0.001V to 1000V autoranging (4 ranges)
Accuracy	0.5% rdg + 2 dgt
Resistance	660Ω, 6.6kΩ, 66kΩ, 660kΩ, 6.6MΩ, 66MΩ
Resolution	0.1Ω on 660Ω
Accuracy	1.0% rdg + 5 dgt to 660kΩ 2.0% rdg + 5 dgt on 6.6MΩ 3.5% rdg + 5 dgt on 66MΩ
Capacitance	0.001nF to 6.6mF (7 ranges)
Frequency	0.01Hz to 1MHz (6 ranges)
Temperature	-20°C to 1000°C (-4°F to 1832°F)
Continuity	buzz at <30Ω
Maximum conductor	55mm diameter or 70mm x 18mm bus bar
Features	Diode test, Duty cycle
Dimensions	281 x 108 x 53mm
Weight	585g approx. incl battery
Includes	TL16 leads, TC68 case, type K thermocouple, battery and manual

Comparison

	CM84	CM87	CM95
AC Current	✔	✔	✔
DC Current	✔	✔
AC/DC Volts	✔	✔
Ohms	✔	✔
Frequency	✔	✔
Capacitance		✔
Non-contact Voltage Detector
Auto ranging	✔	✔
Max Conductor Size	55mm Ø 70x18mm	55mm Ø 70x18mm	85mm Ø
True RMS		✔	✔
Min Max		✔	✔
Backlight		✔	✔
Auto Power Off	✔	✔	✔
Other		Inrush Temperature	Flexible 1mA resolution
Safety	CAT IV 600V	CAT IV 600V	CAT IV 600V
